MLS Fuel Purification Systems remove water and solid particulate from tractors, excavators and generators

Models

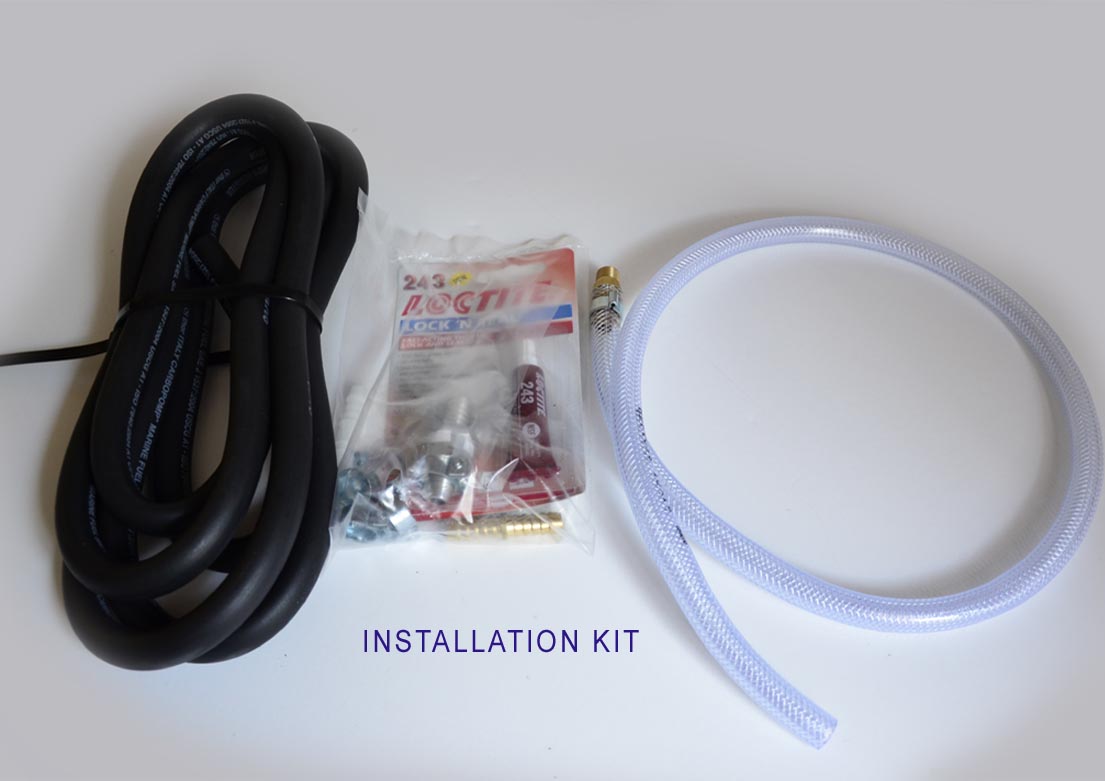

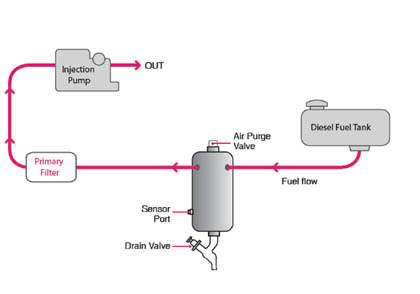

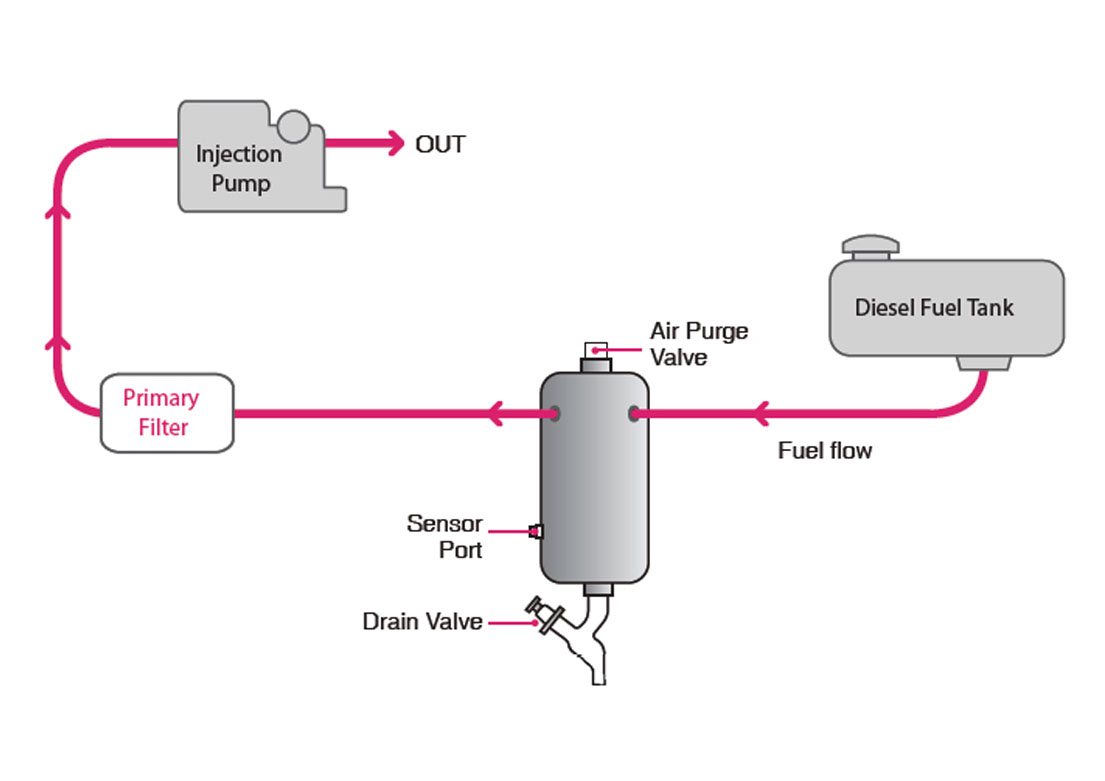

diesel-fuel-filter-separator-installation

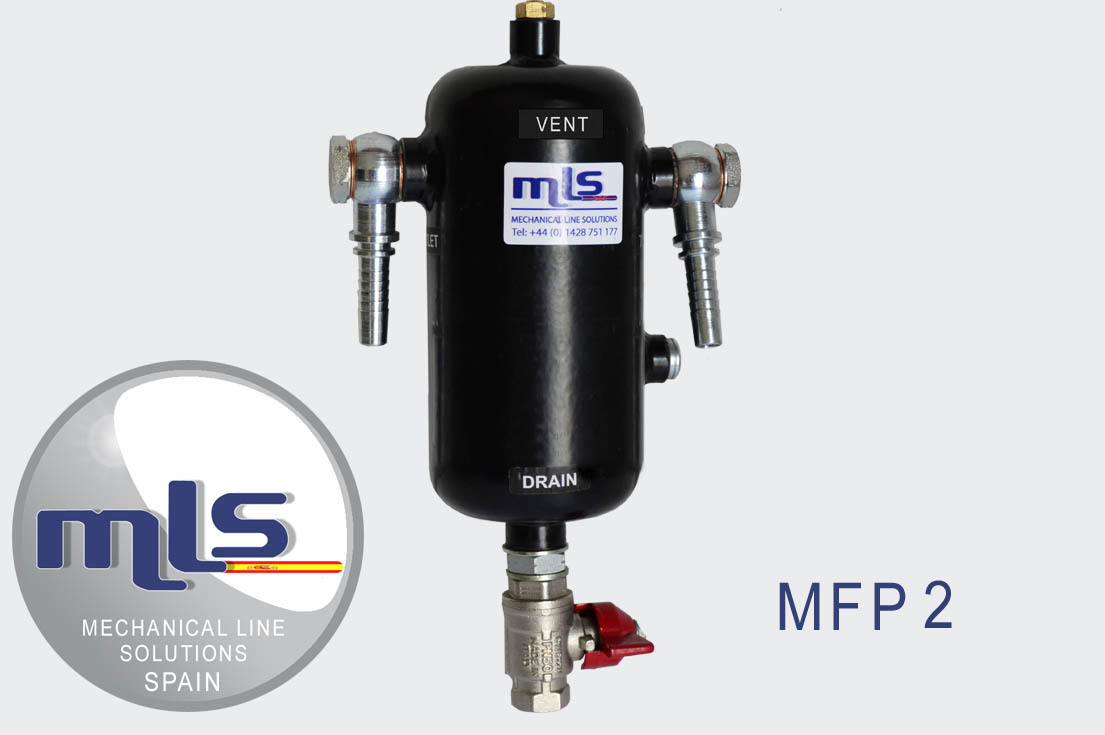

MFP2

UNIT
MFP2
DESCRIPTION
For engines with a fuel pump flow rate of up to 1.9 litres per minute.
Maximum engine size of 150 HP. See manufacturers pump specification for confirmation.
DIMENSIONS
MFP2 - 70mm Dia. x 170mm long

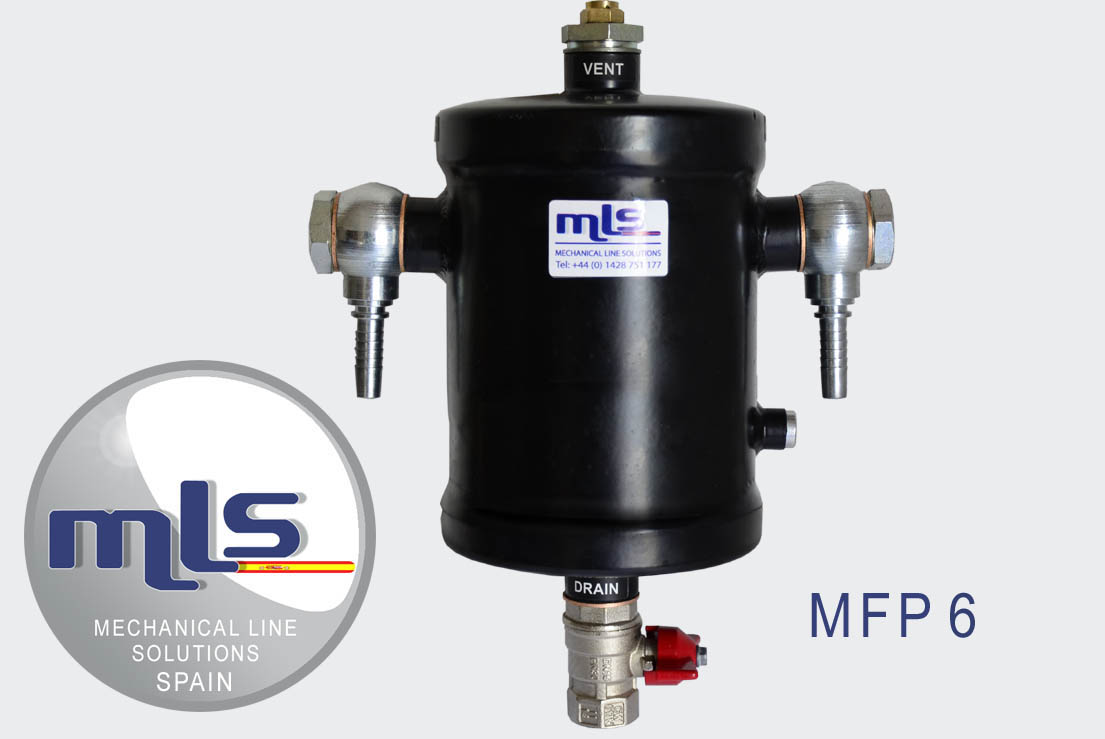

MFP6

UNIT
MFP6
DESCRIPTION
For engines with a fuel pump flow rate of up to 6 litres per minute.
Maximum engine size of 300 HP. See manufacturers pump specification for confirmation..
DIMENSIONS
MFP6 - 115mm Dia. x 200mm long

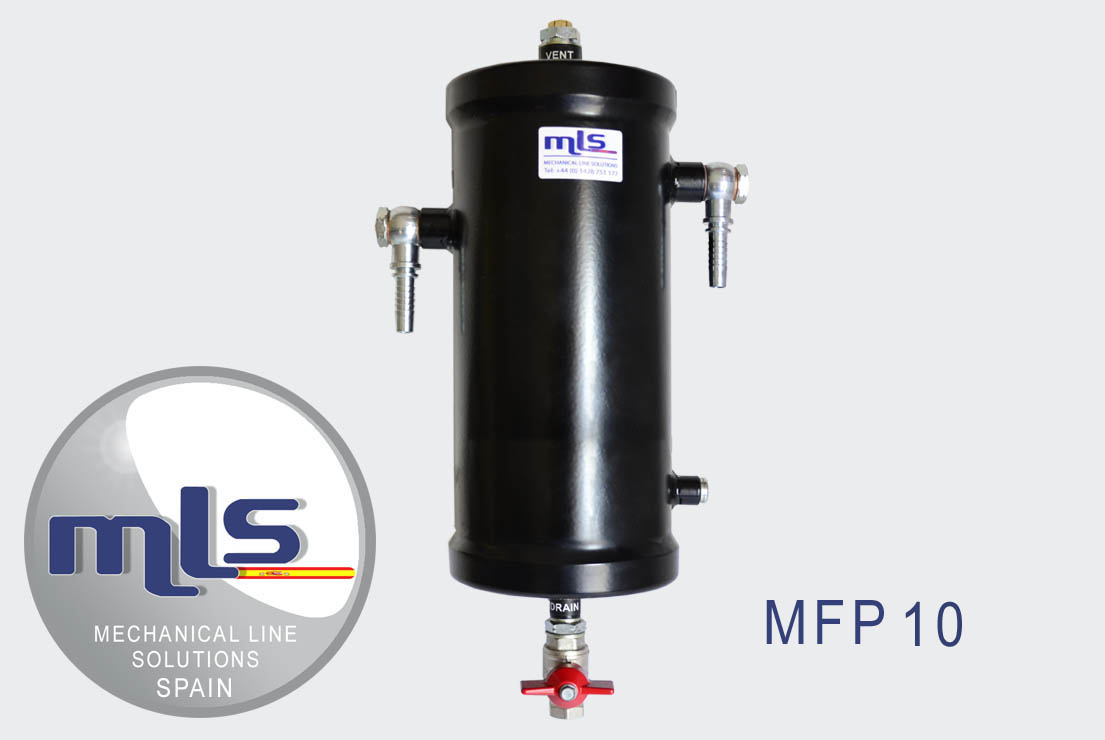

MFP10

UNIT
MFP10
DESCRIPTION
For engines with a fuel pump flow rate of up to 10 litres per minute.
Maximum engine size of 650 HP. See manufacturers pump specification for confirmation.
DIMENSIONS
MFP10 - 115mm Dia. x 320mm long

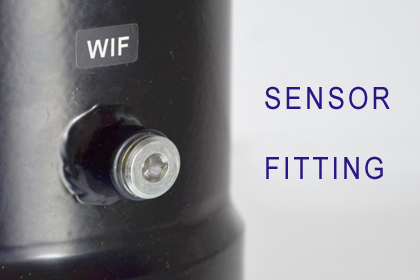

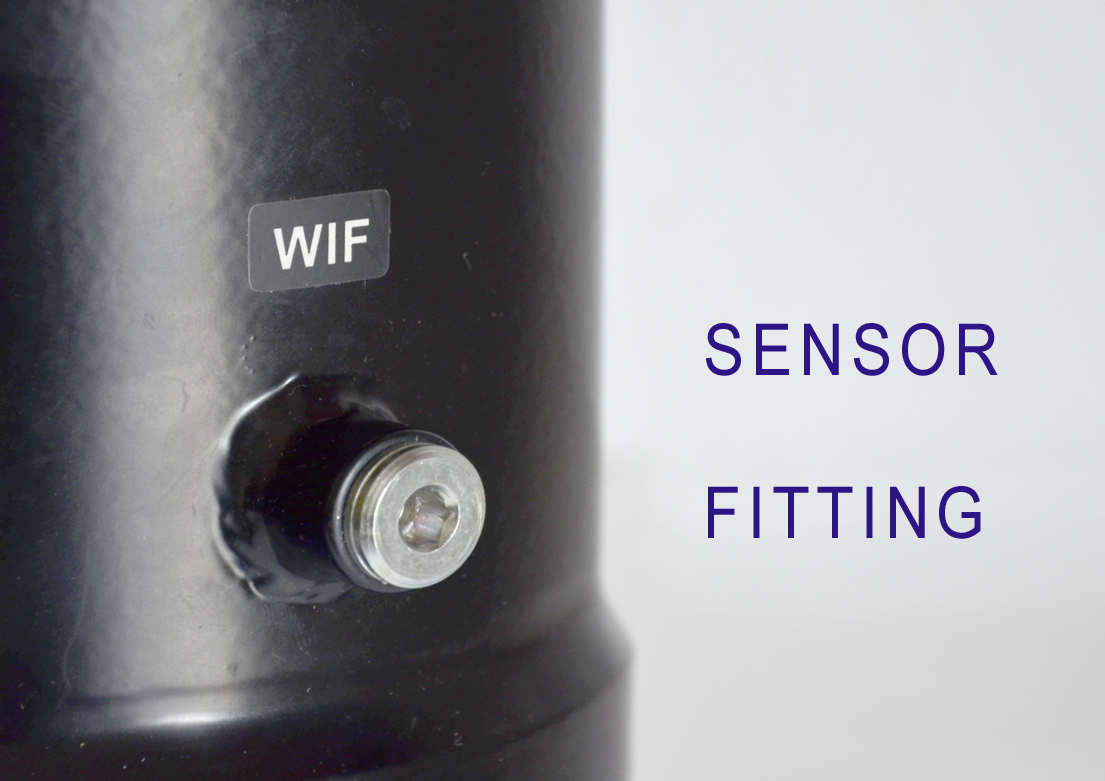

sensor

Sender / Alarm kit
An optional sensor can be supplied to indicate when the system is full.
The sensor can be linked to the MLS communication systems so that drain requirements can be identified from any PC, globally.

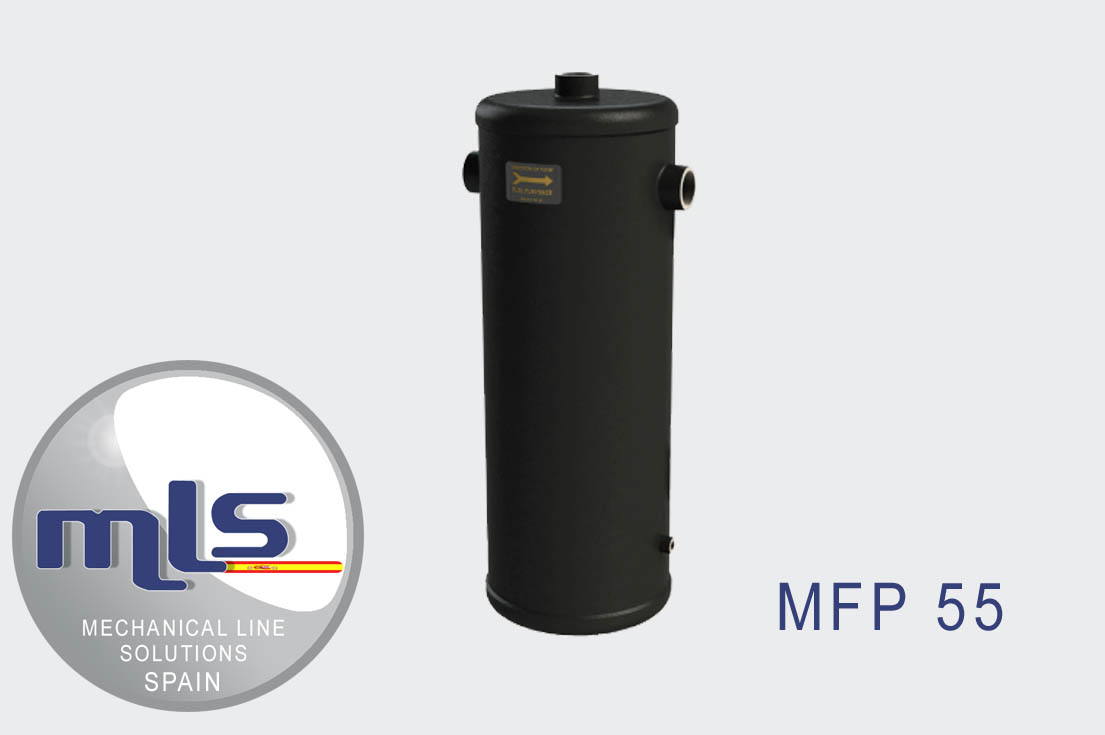

MFP55

UNIT
MFP55
DESCRIPTION
For engines with a fuel pump flow rate of up to 55 litres per minute.
Maximum engine size of 850 HP. See manufacturers pump specification for confirmation.
DIMENSIONS
MFP55 - 115mm Dia. x 406mm long

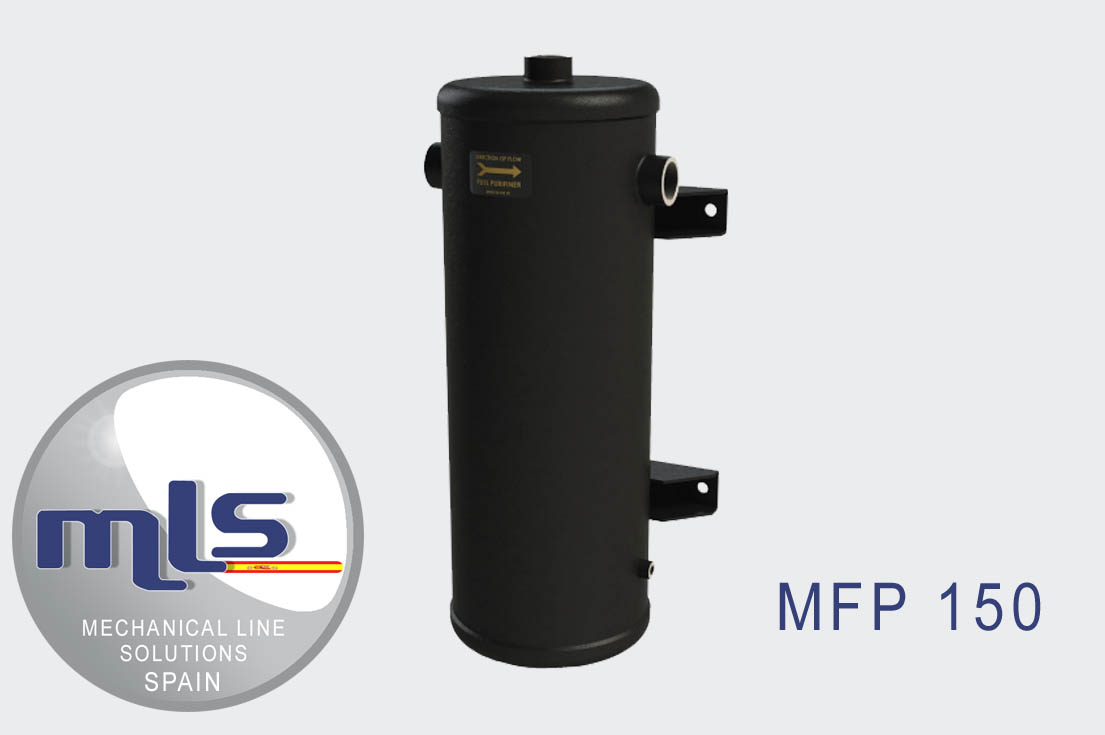

MFP150

UNIT
MFP150
DESCRIPTION
For engines with a fuel pump flow rate of up to 150 litres per minute.
Maximum engine size of 4,000 HP. See manufacturers pump specification for confirmation..
DIMENSIONS
MFP150 - 183mm Dia. x 530mm long

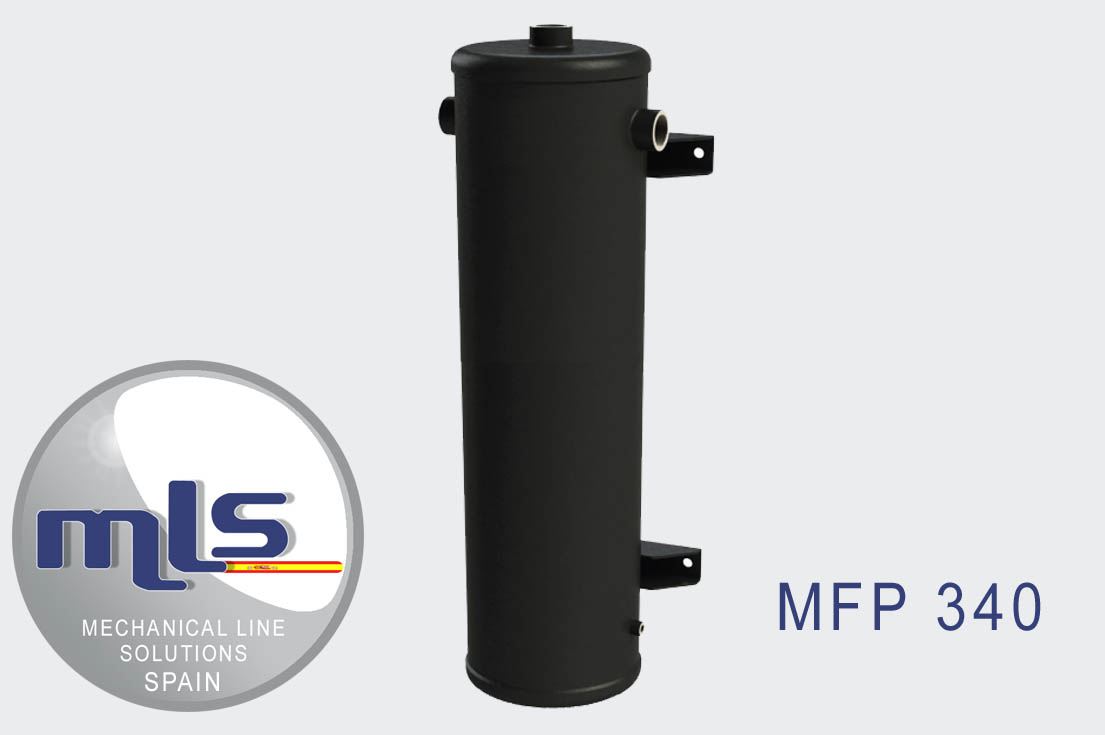

MFP340

UNIT
MFP340
DESCRIPTION
For engines with a fuel pump flow rate of up to 340 litres per minute.
Maximum engine size of N/A HP. See manufacturers pump specification for confirmation.
DIMENSIONS
MFP340- 183mm Dia. x 960mm long

All models can be purchased from North Shore Marine Tel: +34 971 120 894 Fax: +34 971 120 536 Mob: +34 629 643 133 CONTACT
